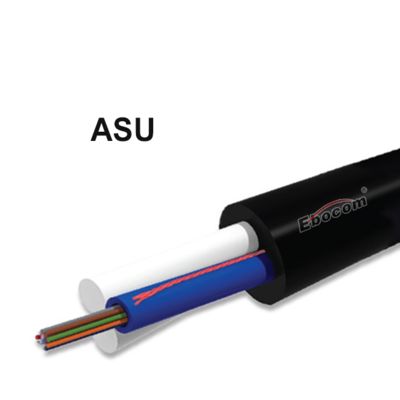

ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
| Lugar de origem | CHINA |
|---|---|
| Marca | Ebocom |
| Certificação | ISO |
| Número do modelo | ASU |
| Quantidade de ordem mínima | 100 peças |
| Preço | USD 0.08~0.1, Meter |
| Detalhes da embalagem | Saco, cartão ou personalizado |
| Tempo de entrega | 7-10 dias |
| Termos de pagamento | T/T, L/C, Western Union, MoneyGram |
| Habilidade da fonte | 80 KM por dia |
Contacte-me para amostras e cupons grátis.
WhatsApp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Jaqueta | Único revestimento | Nome do item | Cabo ADSS MINI |
|---|---|---|---|
| Comprimento do cabo | personalizável | Tipo de fibra | Modo único |
| Membro da força | Frp | Expectativa de vida | Mais de 30 anos |
| Pacote | 3 km/4 km/5 km por tambor | Modelo de fibra | G.652 ou a pedido |
| Comprimento do pacote | 2KM/3KM/5KM ou conforme pedido | Estrutura do cabo | Uni-Loose Tube sem armadura |
| Destacar | ASU FRP strength tube drop cable,HDPE drop cable for fiber optic,self-supporting ADSS fiber optic cable |
||
Descrição de produto
Product Overview
Ebocom’s ASU Mini ADSS Fiber Optic Cable, also known as Mini ADSS Cable, is designed for aerial installations in FTTH networks, power line communication, and outdoor telecom projects.

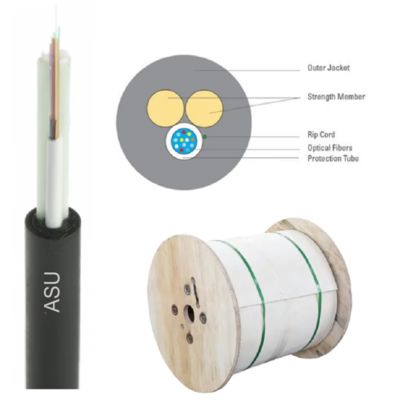

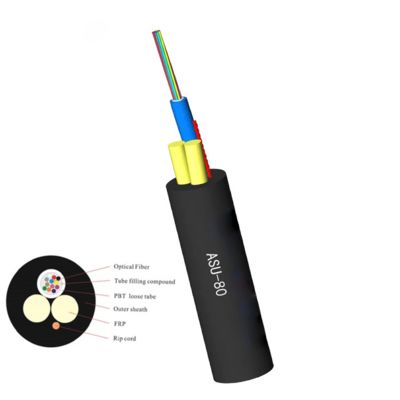

This compact cable features two parallel FRP (Fiber Reinforced Plastic) strength members and one central loose tube containing single-mode or multimode fibers.
The outer diameter can be customized to meet specific project requirements, ensuring a perfect fit for different spans and environmental conditions.
With its all-dielectric self-supporting design, the ASU Mini ADSS cable delivers excellent tensile strength, lightweight construction, and reliable long-distance signal transmission without the need for grounding or metallic support.
Key Features
-
Compact Mini ADSS Structure: Two FRP strength members + one central loose tube for superior mechanical strength and flexibility.
-
Custom Outer Diameter: Tailored to customer specifications for various aerial spans and installations.
-
All-Dielectric Design: No metallic components, safe for high-voltage environments, no grounding required.
-
Durable Jacket: UV-resistant, waterproof, and weatherproof sheath for long-term outdoor use.
-
High Performance: Low attenuation and stable optical transmission over long distances.
-
Wide Application: Ideal for FTTH deployment, pole-to-pole aerial wiring, power line communication, and rural broadband networks.
Typical Applications
-
FTTH and FTTx broadband networks
-
Power line communication and distribution networks
-
Rural and urban aerial fiber deployments
-
Pole-to-pole telecom projects
-
Industrial parks and smart grid communication
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | Single-mode G.652D / G.657A1 / G.657A2 (customizable) |
| Core Count | 2–24 fibers (as required) |
| Structure | Two parallel FRP strength members + central loose tube |
| Outer Diameter | Customizable according to span and project needs |
| Strength Member | FRP (Fiber Reinforced Plastic), high tensile strength |
| Jacket Material | UV-resistant PE / LSZH (optional) |
| Installation Span | Typically up to 100 m (custom span options available) |
| Operating Temperature | -40°C to +70°C |
| Standards | Complies with IEC 60794, ITU-T G.652D/G.657, RoHS |
Why Choose Ebocom ASU Mini ADSS Cable?
-
Flexible Customization: Diameter, fiber count, and jacket color all available to match your project.
-
Proven Quality: Produced in ISO-certified facilities with strict quality control and full-length testing.
-
Fast Delivery: High daily production capacity ensures quick lead times for urgent orders.
-
Global Export Experience: Shipped to telecom operators and contractors worldwide for FTTH and power line projects.
