OPGW 72B1-50 Overhead Ground Wire Cable 24 48 72 96 Core For Tower 220KV Networking Communication
| Lugar de origem | Shandong, China |
|---|---|
| Marca | EBOCOM |
| Certificação | ISO TLC |
| Número do modelo | OPGW-72B1-50[51;9] |
| Quantidade de ordem mínima | 2000m |
| Preço | EXW ≥2000m $800/KM ≥10000m $795/KM |
| Detalhes da embalagem | 1. tambor de ferro-madeira ou tambor de madeira não fumigante, tambor de madeira normal. |
| Tempo de entrega | 5-8 dias |
| Termos de pagamento | T/T |
| Habilidade da fonte | 4000 ms/dia |
Contacte-me para amostras e cupons grátis.
WhatsApp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Número do modelo | OPGW | Modo de cabo | Fios ópticos de fixação à terra |
|---|---|---|---|
| Tipo de cabo | Cabos de opgv enrolados | Contagem de fibras | 24 48 Núcleos |
| Tipo de fibra | G652D/G657A1/G657A2 | Membro da força | Fio de aço frp |
| Palavras-chave | Cabo de fibra ótica | Aplicação | Aéreos/Aéreo |
| Destacar | OPGW 72B1-50 fiber optic cable,220KV OPGW ground wire cable,24 core OPGW communication cable |
||
Descrição de produto
Product Description:

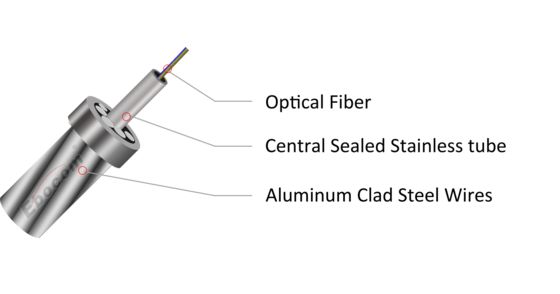

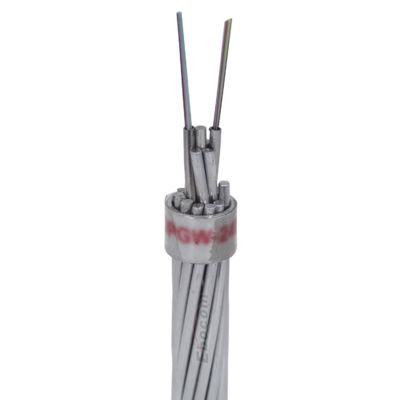

OPGW, or Optical Ground Wire, is a dual-purpose cable used in overhead power transmission lines to provide both grounding and high-speed data communication. It combines the functions of an overhead ground wire, which protects power lines from lightning, with optical fibers that transmit data over long distances. The cable consists of a protective outer layer of steel and aluminum alloy wires, with optical fibers housed in a central tube.
Structure & Technical Specifications:
Application :
OPGW cables are designed to withstand harsh environmental conditions.
Common types are based on the central tube material, which is often aluminum-clad steel or stainless steel.
Some designs use a central tube, while others strand multiple tubes along with wires.
Dual functionality: Reduces the need for separate ground wires and communication lines, leading to cost savings and simpler installation.
High reliability: Built to withstand harsh weather, high voltage, and other environmental factors.
Enhanced operational efficiency: Provides a communication infrastructure for monitoring and controlling the power grid.
Immunity to interference: Fiber optics are immune to electromagnetic interference and crosstal
