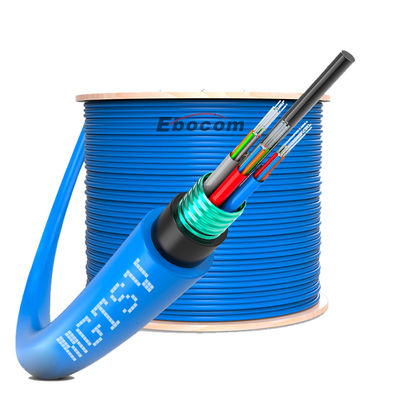

Flame Retardant Mining Fiber Cable MGTSV G652D 12 24 36 48 core Double Armoured for Communication
| Lugar de origem | Shandong, China |
|---|---|
| Marca | EBOCOM |
| Certificação | ISO TLC |
| Número do modelo | MGTSV |
| Quantidade de ordem mínima | 2000m |
| Preço | EXW ≥2000m $0.5/M ≥5000m $0.46/M |
| Detalhes da embalagem | 1. tambor de ferro-madeira ou tambor de madeira não fumigante, tambor de madeira normal. |
| Tempo de entrega | 7 a 15 dias |
| Termos de pagamento | T/T |
| Habilidade da fonte | 10 KMS/dia |
Contacte-me para amostras e cupons grátis.
WhatsApp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Modelo do cabo | Cabos de fibra óptica MGTSV | Membro da força | fita de aço |
|---|---|---|---|
| Material da jaqueta | PE Retardante de Chama | Raio de dobra | Estática 10*Cable-D Dinâmica 20*Cable-D |
| Temperatura operacional | -40°C~+70°C | Cor | Preto |
| Contagem de fibras | 4-288cores | Tipo de fibra | G652D G657A1 G657A2 |
| Data de entrega | 7-15 DIAS | ||
| Destacar | Flame retardant mining fiber cable,MGTSV G652D armored optic cable,Double armoured communication cable |
||
Descrição de produto
Product description
MGTSV is suitable for coal, gold, and iron mines. Its flame-retardant and rodent-proof properties make it an ideal choice for mining operations. It is particularly suitable for accident-prone mines, ensuring uninterrupted communication and minimizing losses in the event of an accident.
The steel armor helps protect the cable from rodent bites and provides bulletproof protection. The double-sheath structure offers excellent moisture resistance and pressure resistance. Furthermore, the outer sheath is flame-retardant, and the loose-tube material itself has excellent hydrolysis resistance. Waterproof performance ensures safety during underground operations
Application
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Excellent fire resistance.
High-strength, hydrolysis-resistant loose-sleeve tubing.
Double-layer wrapping and single-layer reinforcement design provide superior compressive strength, waterproofing, and rodent resistance. The loose-sleeve tubing is wrapped in non-woven fabric for waterproofing. Special internal filling ensures optimal fiber protection.
Blue PVC outer layer: fire resistant; blue for easy identification.
Compressive strength and flexibility.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
