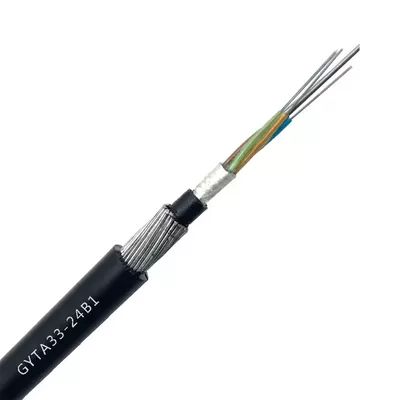

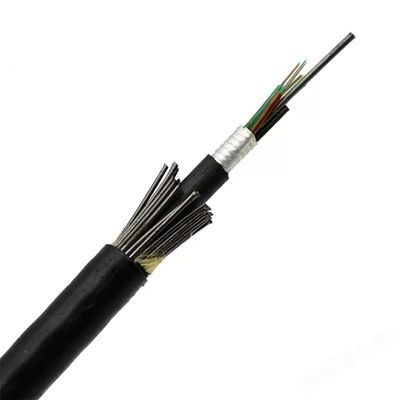

GYTA33 Underwater Fiber Optic Cable 12-144 Cores With Steel Wire Armoring
| Lugar de origem | CHINA |
|---|---|
| Marca | Ebocom |
| Certificação | ISO |
| Número do modelo | GYTA33 |
| Quantidade de ordem mínima | 2000 metros |
| Preço | USD 0.46~3, Meter |
| Detalhes da embalagem | Bateria de madeira compensada ou personalizada |
| Tempo de entrega | 5-10 dias |
| Termos de pagamento | T/T, L/C, Western Union, MoneyGram |
| Habilidade da fonte | 20 km por dia |
Contacte-me para amostras e cupons grátis.
WhatsApp:0086 18588475571
Conversamos: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Aplicativo | Telecomunicação | Tipo de fibra | Modo único ou modo multi |
|---|---|---|---|
| OEM | Disponível | Instalação | Directamente enterrado, debaixo d'água |
| Estrutura | Tubo solto | Material de bainha | HDPE/MDPE |
| Armador | Fio de aço | Essencial | De fibras sintéticas ou artificiais |
| Destacar | underwater fiber optic cable steel wire,outdoor fiber optic cable 12-144 cores,armored fiber optic cable underwater use |
||
Descrição de produto
Product Description
The GYTA33 double armored fiber optic cable is specially engineered for challenging installations such as river crossings, coastal areas, and rugged terrains. Featuring a stranded loose tube design with aluminum tape armor plus steel wire armor, this cable provides exceptional mechanical strength and long-term protection against water ingress, high pressure, and rodent damage.
It is ideal for direct burial, underwater laying in shallow rivers, coastal communications, and other extreme environments that demand maximum durability and stable optical performance.
Our GYTA33 fiber optic cable is available with single-mode G652D or G657A1/A2 fibers and multi-mode options (OM1/OM2/OM3/OM4). With decades of manufacturing expertise, Ebocom ensures reliable quality, OEM/ODM customization, and compliance with ISO standards.
Key Features
-
Double Armored Protection: Aluminum tape armor plus steel wire armor provides superior resistance to mechanical stress, water pressure, and rodent bites.
-
Waterproof & Moisture Resistant: Filled loose tube with water-blocking gel ensures long-term stability in wet and submerged environments.
-
High Mechanical Strength: Designed for riverbeds, wetlands, and direct burial where extra tensile and crush resistance is essential.
-
Wide Application: Perfect for underwater cable installation, coastal communication networks, and harsh soil conditions.
-
Custom Options: Fiber count up to 144 cores, jacket color and print customization, OEM/ODM service.
Typical Applications
-
River and lake crossings
-
Coastal and offshore communication projects
-
Direct burial in rocky or marshy ground
-
Harsh industrial and mining environments
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | Single-mode (G652D / G657A1 / G657A2) or Multi-mode (OM1–OM4) |
| Structure | Stranded loose tube, water-blocking gel |
| Armoring | Inner aluminum tape armor + outer steel wire armor |
| Central Strength Member | Phosphated steel wire |
| Outer Jacket | UV-resistant PE (black) |
| Fiber Count | 2–144 cores |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Direct burial / shallow water / underwater laying |
| Tensile Strength | ≥ 3000 N (customizable based on span requirements) |
| Crush Resistance | ≥ 3000 N/100mm |
| Waterproof Performance | Excellent, suitable for underwater installation |
| Standards | IEC 60794, ISO9001 |
Why Choose Ebocom GYTA33
With over 12 years of fiber optic cable manufacturing experience, Ebocom delivers high-quality, double-armored GYTA33 fiber optic cables tailored for demanding environments. Our own product performance and material testing center ensures every meter of cable meets international standards for durability and optical performance.
